This switch suits the following models ONLY:

For Toyota FJ Cruiser 2006-2021
For Toyota Fortuner 2005-2014
For Toyota Hilux 2005-2014
For Toyota Tac oma 2005-2011
For Toyota Tac oma 2012-2015 (Left Side ONLY)
For Toyota Highlande1r 2001-2007
For Toyota For Tundra 2005-2007 (Center Console if equipped)
For Toyota 4Runne1r 2003-2009
For Toyota Prado 120 Series 2003-2009
For Toyota Land Cruise1r 100 Series 1998-2007
For Toyota Land Cruise1r 75, 76, 78 & 79 series

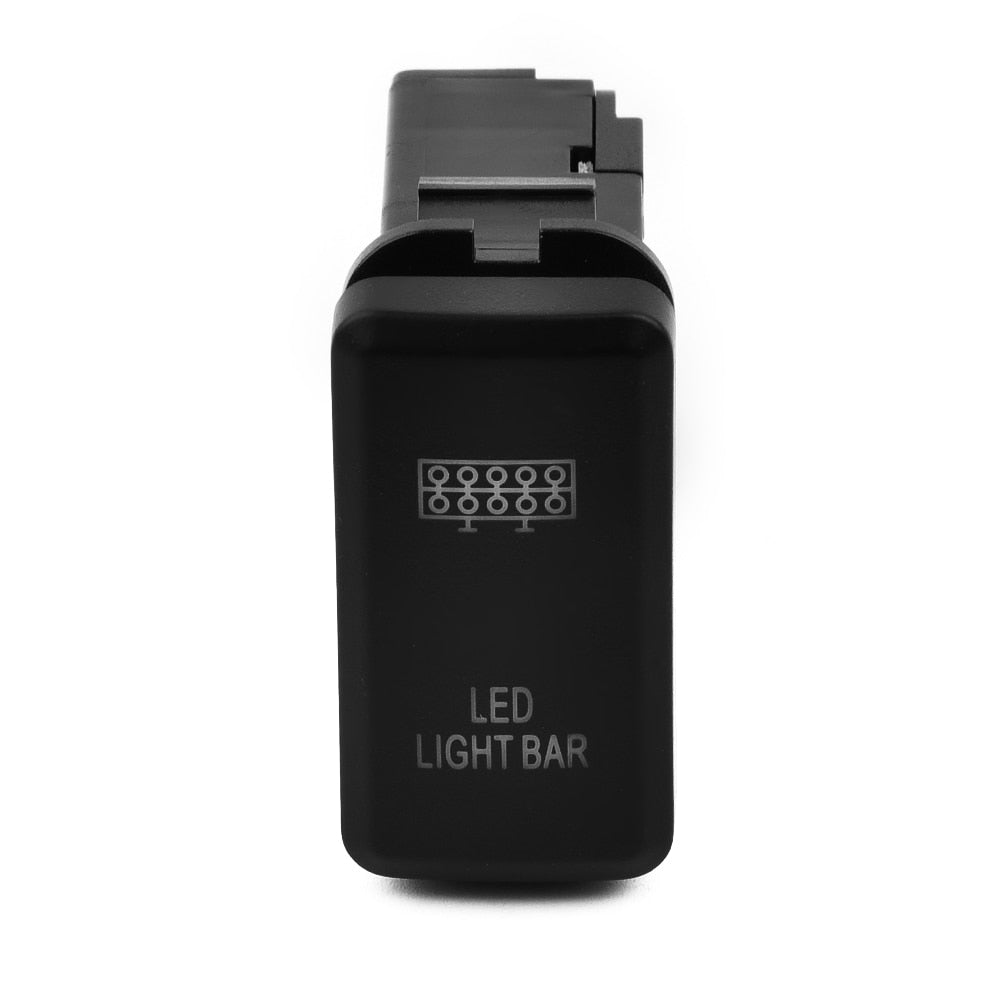

 High-quality ON-OFF push switch that is specifically designed to fit into the OEM space available in Toyota cars. Upgrade the look of your vehicle with this switch that provides a factory-like appearance.

Crafted with precision, this switch is etched directly onto the switch face using modern high-tech engraving equipment. This ensures a long image life and features a backlit panel that illuminates when the switch is turned on.

Here are the specifications of the switch:

Single Pole Single Throw ON-OFF PUSH switch
Black hard surface rocker
Surface size of 1.54" x 0.83" (39 mm x 21 mm)
Voltage: 12V
Rated: 3Amp
Installation is made easy with the following wiring guide:

Green wire goes to the battery
Red wire with a yellow stripe closest to the green wire goes out to the relay
Black wire connects to the ground
Red wire with a yellow stripe closest to the black wire goes to the dash
The package includes the following:

1 ON-OFF Push Switch
1 Connector with cable for easy installation
Upgrade your Toyota car with this high-quality push switch for a seamless and modern appearance.
